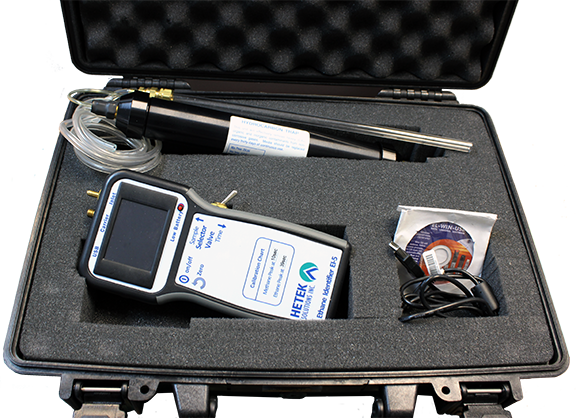

The EI-5 Ethane Identifier, created by Hetek Solutions Inc., is a portable combustible gas analyzer designed specifically for professionals in the gas industry and environmental protection sectors. It serves as a crucial tool for technicians and engineers working with gas detection and environmental monitoring.

Ethane Detection

• The EI-5 Ethane Identifier is engineered to differentiate between gas distributed by utilities and occurring gas found in the ground or subsurface structures.
• Ethane, a significant component of distributed natural gas, acts as a tracer to distinguish it from occurring gases like marsh, soil, landfill, and sewer gas.
• The device can detect and separate Ethane content in natural gas samples, even with concentrations of Ethane as low as 16 ppm, offering quick and accurate indications in the field.

Accessories

The EI-5 Ethane Identifier comes with various accessories and ordering options:

• Different probe types
• Valve assembly
• Sensors
• Tubing
• Filters
• Catering to specific user requirements.

Hetek Solutions Inc. provides a convenient solution for gas industry experts and environmental protection professionals. Our EI-5 Ethane Detector simplifies the detection of ethane in natural gas samples, helps differentiate between distributed and naturally occurring gases, and enables easy and accurate on-site analysis.

Technical Features

• The EI-5 is ruggedly constructed for field applications, with relatively unaffected performance under various ambient temperature conditions.
• It combines semiconductor and chromatographic technology in a single package, offering a sensitive instrument capable of detecting ethane in a sample as low as 800ppm Natural Gas with a composition of ethane of 2% by volume.
• Key features include quick detection within 2 minutes, a graphical color display, data logging with export capabilities, lightweight and handheld design, and a built-in pump for convenient operation.

Physical Characteristics

• Weight: 1.4 lbs (0.6 kg)
• Dimensions (H × W × L): 1.25 × 4.0 × 8.25 inches (3 × 10 × 21 cm)
• Carrying Case Size: 4.5 × 13.5 × 17.5 inches (12 × 34 × 45 cm)

Detection Performance

• Sensitivity: Detects ethane at 16 ppm, or detects ethane in an 800 ppm natural gas sample containing 2% ethane by volume.

Power & Operation

• Power Supply: Four AA alkaline batteries
• Operational Time: Approximately 12 hours of field use
• Sample Rate: 1‑second sampling interval
• Sample System: 4 ft (1.2 m) Tygon tubing

Output & Technology

• Display: Analog graphical display
• Sensor Type: Semiconductor
• Built‑in Pump: Yes
• Data Logging: Included, with export capability
• Detection Time: Ethane presence/absence indicated in under 2 minutes

Download & Links

•  EI-5 Brochure (PDF)
