Product: Hetek Flow Sampler 2.0

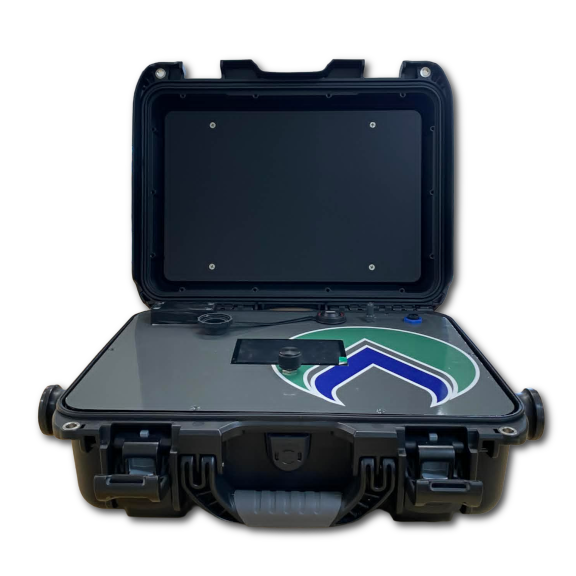

Hetek Flow Sampler 2.0
The Hetek Flow Sampler 2.0 is a portable, methane specific instrument used for
quantifying fugitive emissions, yielding a flow rate in CFM, LPM, or g/hr.
The Hetek Flow Sampler 2.0 is a portable, methane specific gas quantification device that is designed to capture varying quantities of fugitive emissions. The instrument has multiple functionalities including automatic, continuous and interval modes; allowing users to choose the best operation mode for their application.
With the ability to detect lower than 1g/hr, the HFS 2.0 is sensitive to quantify low emissions post-repair and remediation. The expanded
memory, touchscreen interface, and battery life allows for quantification to take place at ease including at remote locations that often require longer instrument operational capacity.

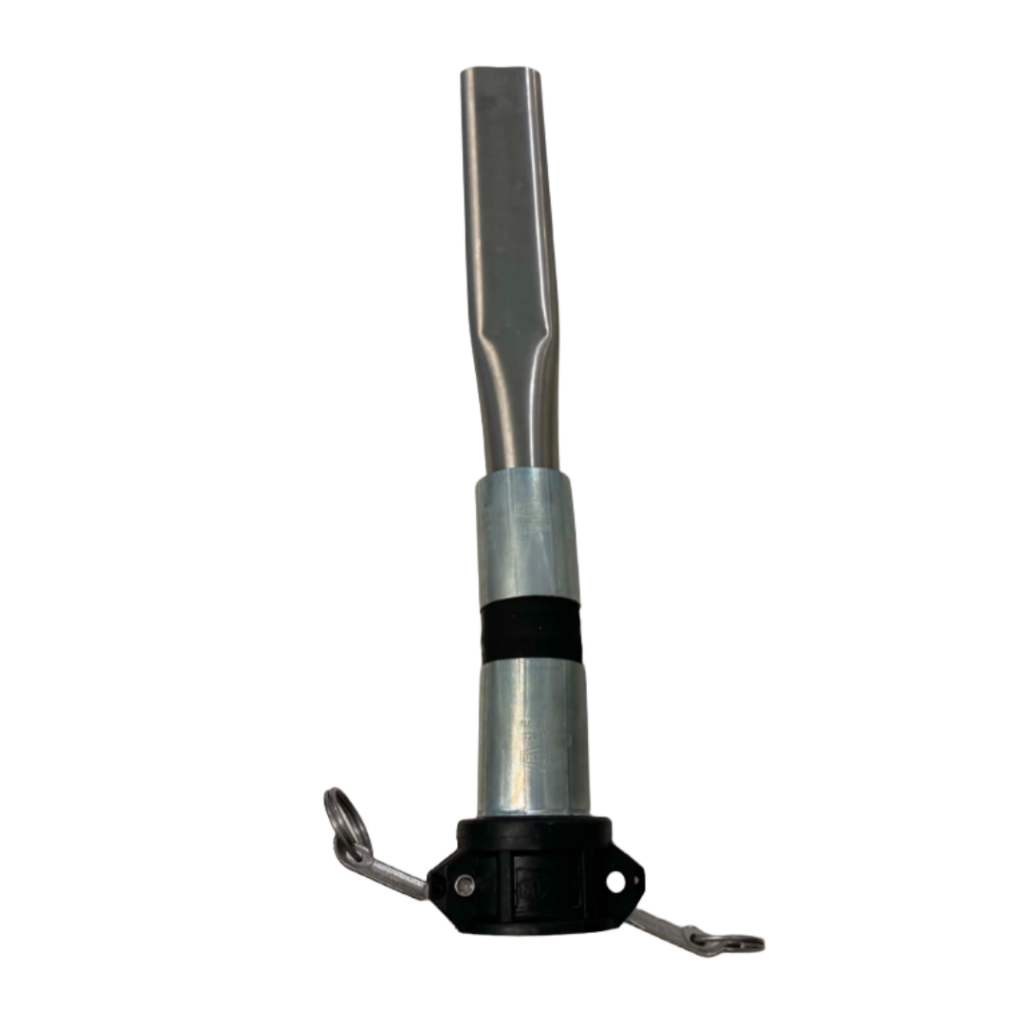

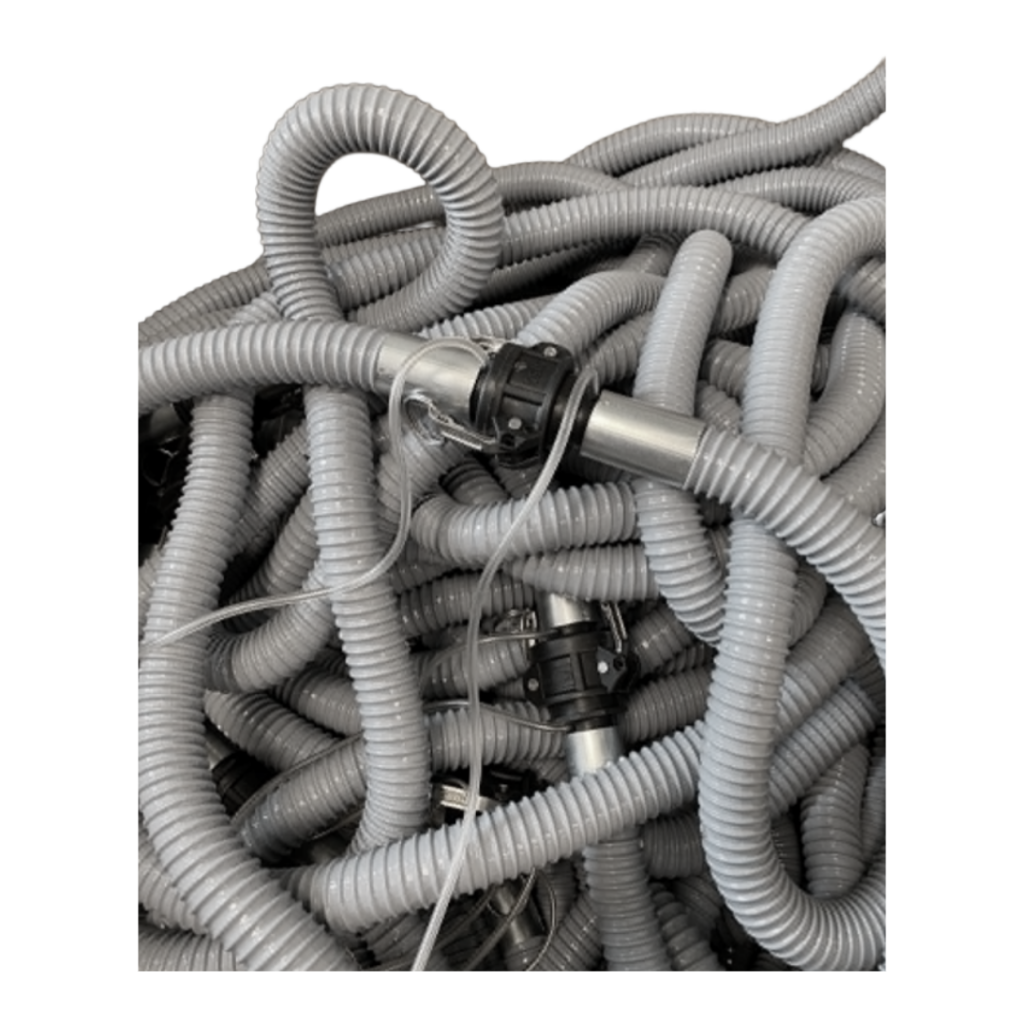

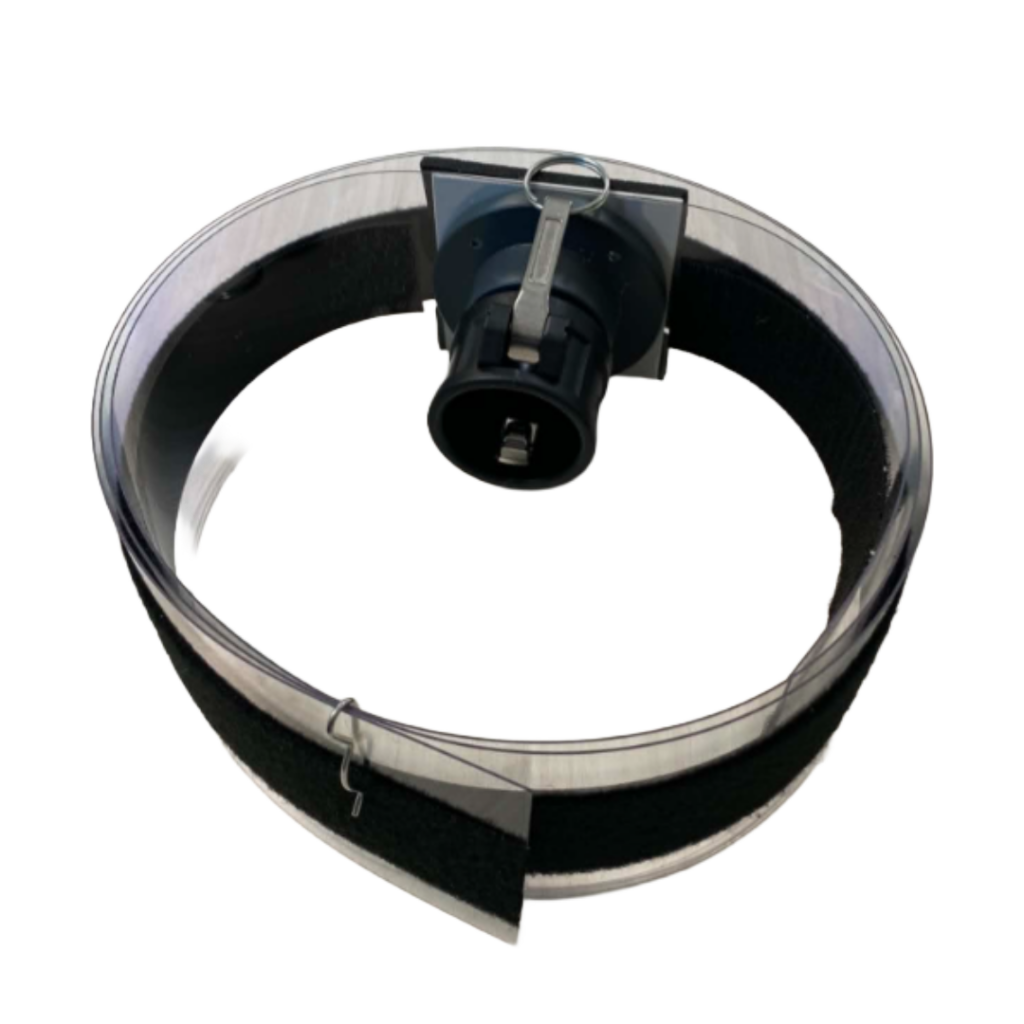

Accessories


Specifications
Display Information
● Verify ● Purge ● Measurement ● Settings
Display Screen Size:
5 inches
Emission Units
Volumetric (LPM or CFM) and Mass Flow (g/hr)
User Controls
Touchscreen and Rotary Switch
Data Output
Digital display
Communication
USB Cable
Logging
Measurement Log Data; Verification Log Data
Measured Values
Background Gas, Temperature and Pressure
Calculated Values
Emission Rate
Blower Flow Rate
~ 290 LPM (maximum)
Lowest Detection Limit
0.025 LPM or 1g/hr
Operating Temperature
-20⁰C to 50⁰C (-4⁰ F to 122⁰F)
Storage Temperature
-20⁰C to 60⁰C (-4⁰ F to 140⁰F)
Sensor
TDLAS – Tunable Diode Laser Absorption Spectroscopy
Battery Life
8 hours
Battery Charging
5 hours
Battery
9.6 V, Ni-MH, 7600 mAh
Weight
20 lbs or 9.07 kgs
Dimensions
20 in x 12 in x 7 in (50.8 cm x 30.48 cm x 17.78 cm)
Flow Measurement
In-Flow Sensor
Accuracy
+/- 5%
Certification (Pending for
these standards from the
following bodies: IECEX,
ATEX, NRTL)
- EN 60079-0 7th Edition
- IEC 60079-11 7th Edition
- CSA C22.2 No. 61010-1-12
- CSA C22.2 No. 60079-0:19
- CSA C22.2 No. 60079-11:14
- EN 60079-11 6th Edition
- UL 61010-1
- UL 60079-0
- UL 60079-11
