Portable, Intrinsically Safe Certified, Battery-Powered, Accurate

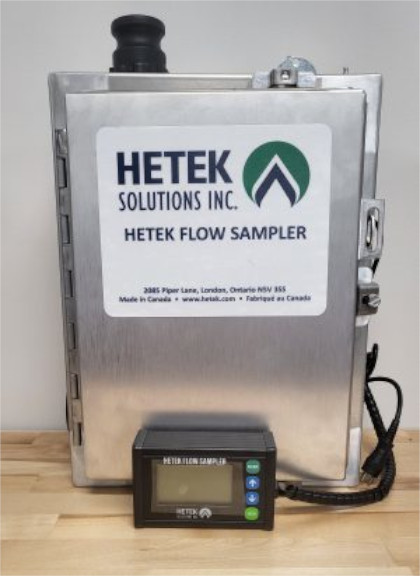

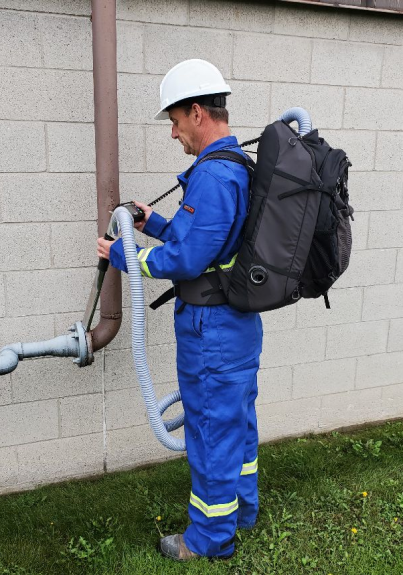

The Hetek Flow Sampler is a portable, battery-powered, and intrinsically safe certified device, making it ideal for use in both expansive industrial facilities and confined spaces. With its compact size and lightweight construction, the Flow Sampler never compromises functionality, ensuring accurate and reliable methane quantification even in the most challenging environments. By utilizing a high-flow rate sampling method, the Hetek Flow Sampler ensures the complete capture of all gases escaping from the component. This technique allows for precise measurement of both the flow rate of the sample and the concentration of gas within it.

The result is an accurate calculation of the leak rate, expressed in cubic feet per minute (CFM) or liters per minute (LPM), enabling effective monitoring and control of emissions to safeguard both the environment and industry compliance.

ACCURACY

Sensor:

± 5% | Flow Rate: ±5%

Calculated Leak Rate:

±10%

Display Information

Date and Time
Blower flow rate
Battery Level
Difference between 2 stages
Sample Concentration
Leak Temperature
Background Concentration

Performance Specifications

Humidity:

0 – 95% relative humidity (non-condensing)

Operating Temperature:

- 20°C to 40°C (-4°F to 104°F)

Blower Flow Rate:

Maximum ≈ up to 8.0 CFM (225 LPM) at full battery charge

Sensor:

Catalytic Oxidation Mode: 0 to 5% by volume methane
Thermal Conductivity Mode: 5 to 100% by volume methane

Leak Measurement:

0.50 – 140 LPM (0.017 – 5.0 CFM, 19.65 – 5502 g/hr ) : Automatic 2-Stage & Manual 2-Stage
0.13 – 140 LPM (0.004 – 5.0 CFM, 4.95 – 5502 g/hr) : Manual 1-Stage

Battery Run Time:

≈ 4 hours (per battery) | 2 batteries included

Accuracy:

Sensor: ± 5% | Flow Rate: ±5% | Calculated Leak Rate: ±10%

Device Specifications

Weight Enclosure and Display:

19.90 lbs (9.05 kgs)

Dimensions:

Enclosure: 12” L x 16” H x 7.5” D (30.48 cm L x 40.64 cm H x 19.05 cm D)

Display Screen Size:

3-inch LCD Display

User Controls:

4 Pushbutton keys: ESCAPE; ↑ (up arrow); ↓ (down arrow); ENTER

Data Output:

Data log file and Calibration log file (.CSV format)

Memory:

800 records for Data; 1000 records for Calibration

Communications:

USB cable from Hetek Flow Sampler to a digital device
