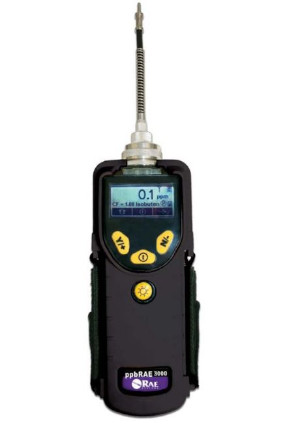

The ppbRAE 3000+ is a best-of-breed monitor trusted by many of the world’s leaders in CBRNE, HazMat Response, Civil Defense, Oil & Gas, and other hazardous environments. Using a 3rd generation photoionization detector (PID) and built-in correction factors for more than 200 compounds, the ppbRAE 3000+ is one of the most advanced VOC monitors for parts-per-billion (ppb) detection. It measures the presence of VOCs from 1ppb-10,000ppm with a three-second response time. Optional built-in Mesh Radio enables real-time monitoring of instrument readings wirelessly. Another option is Bluetooth, which can relay readings and alarm status up to 2 miles to a RAELink 3 wireless transmitter. And a rugged housing, large display, and large keys that can be operated with three layers of gloves all make for a unit that’s easy to use and maintain.

A rugged housing, large display, and large keys that can be operated with three layers of gloves all make for a unit that’s easy to use and maintain.
ppbRAE 3000 + is solution oriented through multiple connected options. A dedicated mobile APP has been developed for survey applications. Instrument is also available with real time connectivity which can relay readings and alarm status up to 2 miles to a RAELink 3 wireless transmitter.

Features and Benefits:

• Measures from 1ppb up to 10,000ppb
• 3-second response time
• Humidity compensation
• Optional Mesh Radio for ConneXt compatibility
• Optional BLE Module
• Optional built-in Bluetooth transmitter that transmits real-time data up to 2 miles with RAELink3 wireless router
• Sample pump draws from up to 100 feet
• Correction factors for more than 350 compounds
• Large display reports gas type, correction factor, concentration
• Rugged housing for harsh environments
• Sensor and lamp auto-cleaning
• Built-in flashlight
• Multi-language capability – up to 10 languages
• MIL-STD-810F certified rugged housing for harsh environments
• Patented PID lamp auto-cleaning
• Patented Reflex PID Technology™

Monitor-Only Configuration Includes:

• ppbRAE 3000+ Monitor
• Wireless communication in built, as specified
• PID lamp, as specified
• Flex-I-Probe
• External Filter
• Black Rubber Boot
• Alkaline Battery Adapter
• Lamp cleaning tool kit
• Li-ion battery w/universal AC/DC adapter and international plug kit
• Travel Download Charger
• Soft Leather Carrying Case
• VOC Zeroing Tube (1 box), tube adapter, sampling bag

Accessories Kit adds:

• Hard Transport Case
• Charging/Download Cradle
• 5 Porous Metal Filters and O-Rings
• Gas Outlet Port Adapter and Tubing

Accessories:

• Alkaline Battery Pack
• Slim Rubber Boot (black)
• VOC Zeroing Kit
• Collapsible, aluminum remote access probe w/insulated handle and 2.0m of Teflon Tubing.  Probe expands to 35″ overall length

Weight:

738g

Dimensions:

255 x 76 x 64mm

Humidity Range:

0-95% RH (Non-Condensing)

Temperature:

• -20°C – 50°C
• 12 Languages Encoded

Alarm Type:

Audible (95dB), Visual

Battery Run Time:

16 hours (12 Hours w/Alkaline Battery Adapter)

Warranty:

1 Year for Pump, Battery and Instrument. 3 Years for 10.6 eV Lamp

Wireless Technology:BLE and MESH

IP65 Unit Running, IP67 Unit Off and without Flexible Probe

Gas Types and Ranges:

• VOCS 0ppb-9,999ppb, 1ppb resolution, <3 sec response time
• VOCS 10-99ppm, 0.01ppm resolution, <3 sec response time
• VOCS 100-999ppm, 0.1ppm resolution, <3 sec response time
• VOCS 1,000-9,999ppm, 1ppm resolution, <3 sec response time

Application:

• CBRNE
• Decontamination
• Environmental Cleanups/ Remediation
• Hazmat Response
• Indoor Air Quality
• Plant Shutdown & Turn-Around
• Urban Search & Rescue
• Venue Protection
• Worker Exposure

Learning Center:

• Guideline for PID Instrument Response: A Guideline for Pid Instrument Response
• Measuring Soil Headspace and In Soil Vapor Extractions: Technical Note 118 Using RAE Systems PIDs For Measuring Soil Headspace And In Soil Vapor Extractions
• Combating Drift In Portable and Fixed PIDS: Technical Note 165 Combating Drift In Portable And Fixed PIDs
• Humidity Filtering Tube for PID Measurements in Humid Environments: Technical Note 178 Humidity Filtering II Tube For PID Measurements In Humid Environments
• Effect of Extension Tubing Volume and Vacuum on Sample Flow for RAE Systems Instruments: Technical Note 140 The Effect Of Extension Tubing Volume And Vacuum On Sample Flow For RAE Systems Instruments
• Setting Alarm Limits for Mixtures: Technical Note 130 Setting Alarm Limits For Mixtures
• Conversion of PID Readings to Methane Equivalent or Hexane Equivalent FID Response: Technical Note 158_Conversion Of PID Readings To Methane Equivalent Or Hexane Equivalent FID Response
• Measuring PID Correction Fators for Volatile Compounds w/RAE Systems Instruments: Technical Note 120 Measuring PID Correction Factors For Volatile Compounds With RAE Systems Instruments
