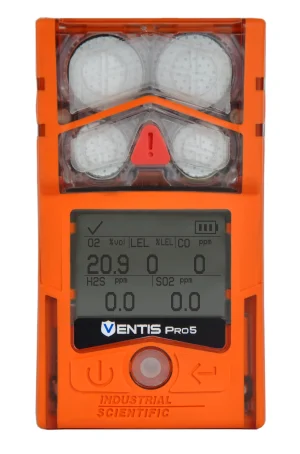

The Most Flexible & Connected 5-Gas Monitor

The Ventis® Pro5 5-gas monitor gives you the power to monitor up to five gases simultaneously and manage worker safety any time, anywhere. This multi-gas monitor connects workers for live monitoring to instantly receive real-time location data, man-down alarms, and gas alerts so that your team always has help.

Connect Your Workers to Safety with the Ventis® Pro5 Five Gas Monitor

Connectivity is critical to collecting valuable site safety data and getting workers the help they need, when they need it.

See all your people in one place with flexible, automatic connectivity to iNet Now live monitoring using cellular, wi-fi, or satellite. Respond quickly in an emergency with real-time alerts that show who needs help, why they need help, and where they’re located.

The result? A fully-connected workforce—without additional infrastructure or IT setup.

Included with Instrument Purchase:

• Instrument with designated sensors
• Rechargeable Battery
• Suspender Clip
• Quick Start Guide
• Ventis Charger
• Calibration Cup
• Calibration Tubing

Optional Accessories:

• Single-Unit Charger
• Single-Unit Automotive  Charger, 12 VDC
• Single-Unit Truck-Mount Charger, 12VDC w/Cigarette Adapter
• Single-Unit Truck Mount Charger, 12VCD Hard Wired
• Ventis 6-Unit Charger
• DSXi Docking Station
• Calibration Cup

Weight:

200g

Dimensions:

104 x 58 x 36mm

IP68 @ 1.5m for one hour

Sample Flow Rate:

250ml/min Lower Limit 62.5ml/min Upper Limit 415ml/min

Temperature Range:

-40°C to 50°C

Relative Humidity:

15-95% RH (Non-Condensing)

Pressure Range:

0.8 to 1.2 atm (80kPa to 120kPa)

Warranty:

• 4 Years on Pump, O2, LEL, CO and H2S sensors,
• 1 Year for PID Sensor,
• 2 Years on all other sensors and batteries

Battery Run Time and Charge Time

• Wi-fi Battery: 14 hours Run time, up to 7.5 hours Charge time
• Cellular Battery: 14 hours Run time, up to 8 hours Charge time
• Standard Battery: 12 hours Run time, up to 4 hours Charge time
• Slim Extended Battery: 25 hours Run time, up to 7.5 hours Charge time
• Extended Run-time Battery: 23 hours Run time, up to 7.5 hours Charge time

Gas Types and Ranges:

• CATALYTIC BEAD
  Combustible Gases: 0-100% LEL in 1% increments
  Methane (CH4): 0-5% of vol in 0.01% increments
• ELECTROCHEMICAL
  Ammonia (NH3): 0-500 ppm in 1 ppm increments
  Carbon Monoxide (CO): 0-2,000 ppm in 1 ppm increments
  Carbon Monoxide High (CO High): 0-9,999ppm in 1 ppm increments
  Carbon Monoxide (CO/H2 low): 0-1,000 ppm in 1 ppm increments
  Carbon Monoxide/Hydrogen Sulfide: CO: 0-1,500 ppm in 1 ppm increments
  H2S: 0-500 ppm in 0.1 ppm increments
  Chlorine (Cl2): 0-50 ppm in 0.1 ppm increments
  Hydrogen (H2): 0-2,000 ppm increments
  Hydrogen Sulfide (H2S): 0-500 ppm in 0.1 ppm increments
  Hydrogen Cyanide (HCN): 0-30 ppm in 0.1 ppm increments
  Nitrogen Dioxide (NO2): 0-150 ppm in 0.1 ppm increments
  Oxygen (O2) (Standard/Long-Life): 0-30% of vol in 0.1% increments
  Phosphine (PH3): 0-10 ppm in 0.01 ppm increments
  Sulfur Dioxide (SO2): 0-150 ppm in 0.1 ppm increments
• INFRARED
  Carbon Dioxide (CO2): 0-5% vol in 0.01% increments
  Methane (CH4): 0-5% vol in 0.01% increments
  5-100% vol in 0.1% increments
  Carbon Dioxide/Combustible CO2: 0-5% vol in 0.01% increments
  LEL:0-100% LEL in 1% increments
  Carbon Dioxide/Methane: CO2: 0-5% vol in 0.01% increments
  CH4:0-5% vol in 0.01% increments
  CH4:5-100% vol in 0.1% increments
  Hydrocarbons: 0-100% LEL in 1% increments
  Hydrocarbon (HC ULP): 0-100% LEL in 1% increments
  Methane (CH4 ULP): 0-100% LEL in 0.1% increments
  5.1-100% vol in 0.1% increments
• PHOTOIONIZATION
  Volatile Organic Compounds (10.6 eV) 0-2,000 ppm in 0.1 ppm increments

Ventis Pro4 Training Video:

• Ventis® Pro5

Download & Links

• Industrial Scientific Ventis Pro5 Spec Sheet English (PDF)
• Industrial Scientific Ventis Pro5 Spec Sheet French (PDF)
• Industrial Scientific Ventis Pro5 Product Manual English (PDF)
• Industrial Scientific Ventis Pro5 Product Manual French (PDF)
• Industrial Scientific Ventis Pro5 Brochure (PDF)
